High Frequency Solar Off Grid Inverter Energy Storage Inverter 3.5kw-5.5kw

Name: High Frequency Solar Off Grid Inverter Energy Storage Inverter 35kw55kw
Brand: Yima
Price: 1 USD

Buy cheap High Frequency Solar Off Grid Inverter Energy Storage Inverter 3.5kw-5.5kw product

Brand Name : Yima

Model Number : HB-PV

Certification : ISO14001 ISO9001

Place of Origin : China

MOQ : 2 pieces

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100000 Piece/Pieces per Month

Product Name : Off Grid Inverter

Rated Capacity : 1Kw-12Kw

Series : Pure sine wave series

Warranty : 5 Years

OEM/ODM : Available

Application : renewable energy systems, solar photovoltaic systems

Contact Now

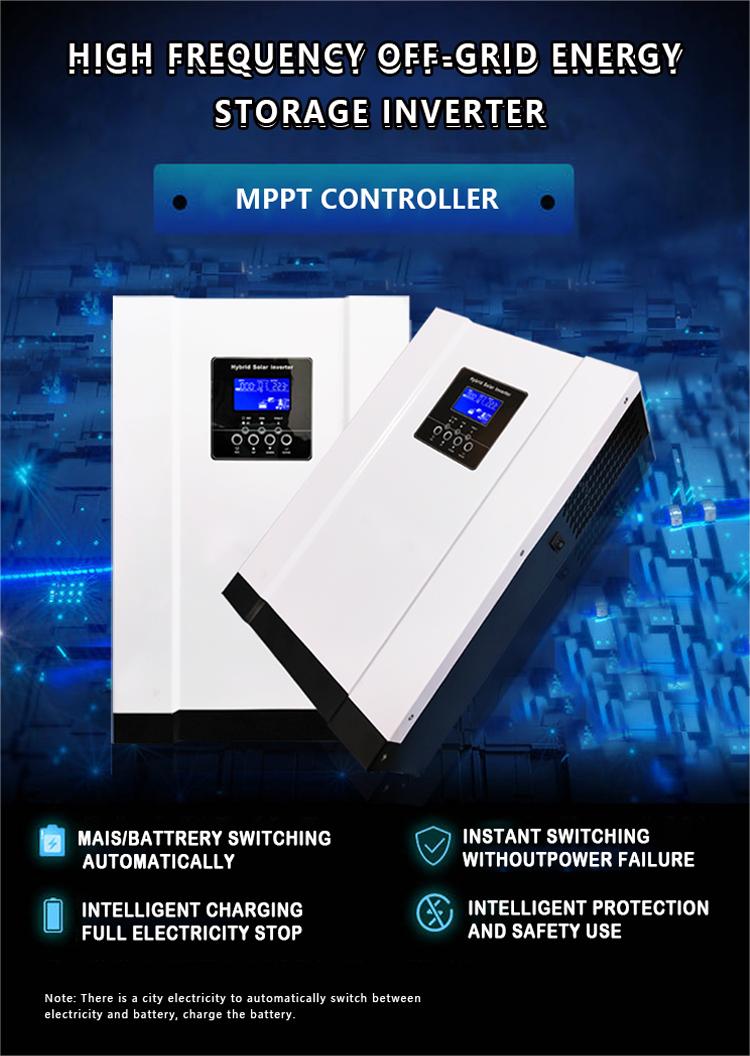

HB-PV series-HIGH FREQUENCY OFF-GRID ENERGY STORAGE INVERTER

Product Snapshot

Model : 3.5-5.5kw

NominalVoltage:230VAC

FrequencyRange:50HZ/60HZ

PRODUCT Features:

1,Pure sine wave solar inverter

2,Output power factor 1.0

3,Wifi&GPRS available for IOS and android

4,Inverter running without battery

5,Buit-in 100A MPPT solar charger

6,High PV input voltage range(120~500VDC)

7,Buit-in anti-dusk kit for harsh environment

Smart battery charge design to optimize battery life

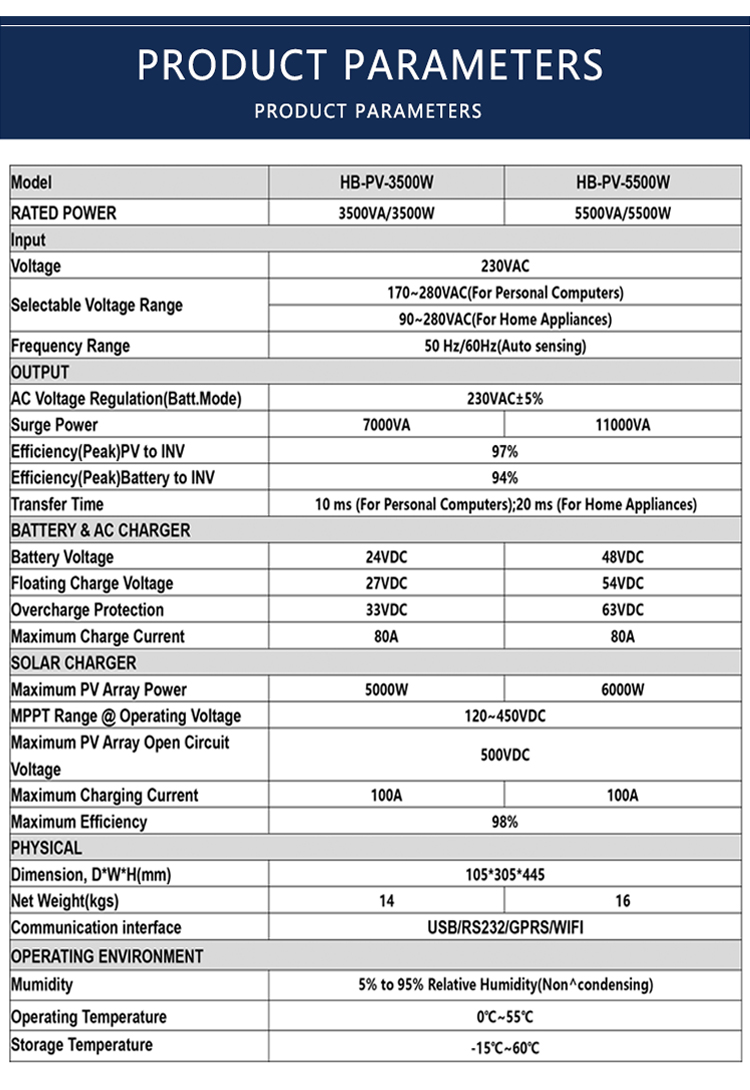

Model	HB-PV-3500W	HB-PV-5500W
RATED POWER	3500VA/3500W	5500VA/5500W
Input
Voltage	230VAC
Selectable Voltage Range	170~280VAC(For Personal Computers)
	90~280VAC(For Home Appliances)
Frequency Range	50 Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation(Batt.Mode)	230VAC±5%
Surge Power	7000VA	11000VA
Efficiency(Peak)PV to INV	97%
Efficiency(Peak)Battery to INV	94%
Transfer Time	10 ms (For Personal Computers);20 ms (For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	80A	80A
SOLAR CHARGER
Maximum PV Array Power	5000W	6000W
MPPT Range @ Operating Voltage	120~450VDC
Maximum PV Array Open Circuit Voltage	500VDC
Maximum Charging Current	100A	100A
Maximum Efficiency	98%
PHYSICAL
Machine size (mm)	*465300115mm*
Package dimensions (mm)	*515365175mm*
Net weight (kg)	10	10.5
Maozhong (kg)	11	11.5
Communication interface	USB/RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Mumidity	5% to 95% Relative Humidity(Non^condensing)
Operating Temperature	0℃ ~55℃
Storage Temperature	-15℃ ~60℃
