Name: Customizable 5kwh Lifepo4 Battery Residential Solar Battery 48V 100Ah
Brand: YIMA
Price: 801.90 USD

Model Number : YM-RACK-48V

Brand Name : YIMA

Place of Origin : Guangdong, China

Supply Ability : 100000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $801.90 - $3,422.80/pieces

Battery Type : Lithium Ion, LiFePO4

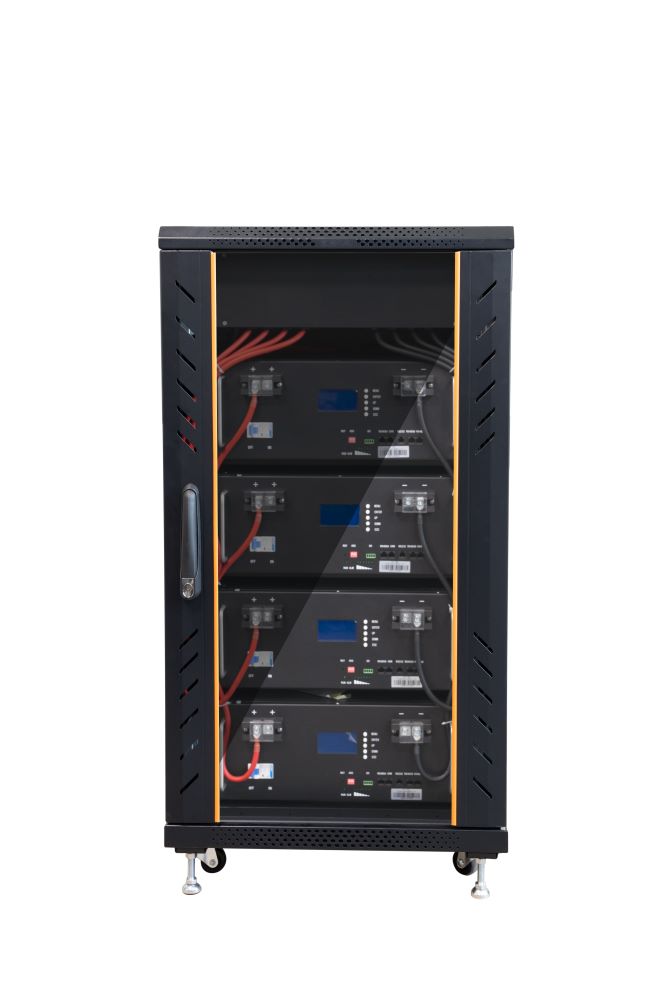

Product Name : Home Rack Mount Energy Storage System

Operation Temperature Range : Charge:0~55℃, Discharge: -20~55℃

MAX Charging Voltage : 58.4V

Application : Solar energy storage system, ESS, UPS

Storage Temperature Range : -20℃~55℃

OEM/ODM : YES

Size(W/D/H) : Pack Customized

Communication Interface : ARS232(option)/ RS485 (option)/Canbus (option)

Weight : According to customized

Display : LCD

Port : Shenzhen

Contact Now

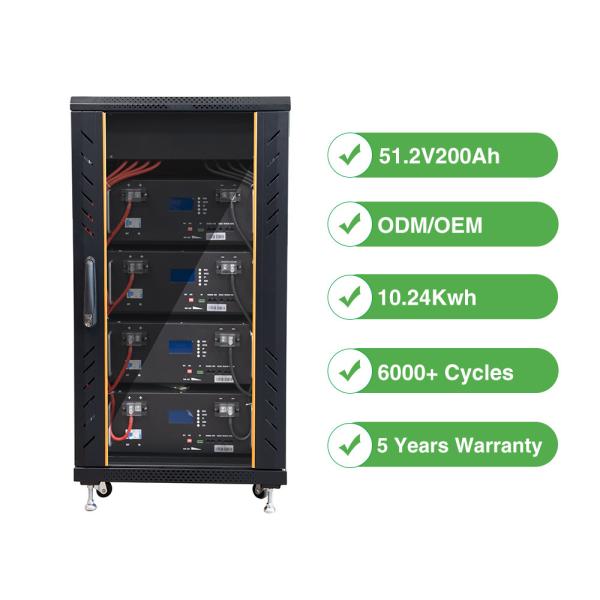

5kWh 10kWh 20kWh Residential Household Energy Storage UPS Backup Power 51.2V 48V 100Ah 200Ah LiFePo4 Battery, Home Solar System

Product Description

System Composition Parameters
Combination method	PACK*2-15
Mean Operation Voltage	48V-50V
Discharge Cut-off Voltage	<=41V
Charging Voltage	58.4V
Standard charge	Standard
Standard discharge	50A*P
Maximum Continuous Charge Current	50A*P
Maximum Continuous Discharge Current	180A*P

Communication	It has CAN and RS485 standard communication interface, it real-time monitoring the capacity of battery bank, the voltage, current,environment temperature, and charging/discharging current, RS485,CAN,Baud rate:9600Kb/S,CAN COMMON:Master address:CODE 1.slave address:2-15 ,any number
Alarm	It has over-temperature, over charge, under-voltage, over-current, short circuit alarm Function.
Mean Operation Voltage	<=40.5V
Internal Impedance	≤100mΩ(Under 20±5℃ Environment Temperature , the Usage Frequency of Fully Charge( 1KHz) , Use AC Internal Impedance test machine to test)
Max Charging Current	100A
Limited Charging Voltage	200A
Discharge Cut-off voltage	41V
Single module Size/Weight	620442177mm /90Kg
